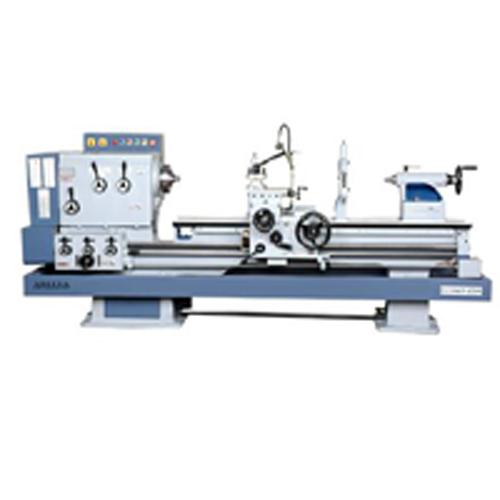

Details |
|
| Description |
|
| Height of Centre |
254 |
| Swing Over Bed (mm) |
490 |
| Swing Over Cross Slide (mm) |
300 |
| Distance Between Center (mm) |
1000/1500/2000/2500/3000 |
| Max. Swing in Gap (mm) |
800 |
| BED |
|
| Bed Type |
2 V & 2 Flat |
| Bed Width (mm) |
325 |
| Length of Gap in Front of Face Plate (mm) |
175 |
| HEAD STOCK |
|
| Number of Feeds |
8 |
| Spindel Speed Range : R.P.M. |
30 TO 1230 |
| Type of Size of Spindle Nose |
Threaded Type |
| Spindle Bore ( mm) |
52 |
| Spindle Taper Number |
MT -6 |
| Diameter of Front Bearing |
OD 140 x ID 80 |
| FEEDS AND THREADS |
|
| Number of Feeds |
72 |
| Range of longitudinal Feeds (mm/Rev) |
0.45 to 1.600 |
| Range of Cross Feeds (mm/rev) |
0.003 to 0.128 |
| Number of Threads |
103 |
| Range of Metric Threads/No. |
0.2 to 6.5 mm (31) |
| Range of Inch Threads,No. |
72 to 4 TPI (36) |
| Range of Module Threads/No. |
0.4 to 3 Module (15) |
| Range of D.P. Threads/No. |
44 to 8 D.P. (21) |
| Leed Screw Dia (mm) |
38.1 |
| Leed Screw Pitch (mm) |
6 mm |
| SADDLE |
|
| Cross Slide Dimension (mm) |
445 x 200 |
| Cross Slide Travel (mm) |
325 |
| Tool Shank Section (mm) |
25 x 25 |
| Saddle Traverse (mm) |
890/1390/1890/2390/2890 |
| Compound Slide Traverse (mm) |
150 |
| TAIL STOCK |
|
| Spindle Dia (mm) |
57.15 |
| Spindle Taper Number |
MT-4 |
| Spindle Travel |
200 |
| Lateral Move to Tail Stock (mm) |
5 |
| MOTOR |
|
| Main MKotor (Kw.) |
2.25 |
