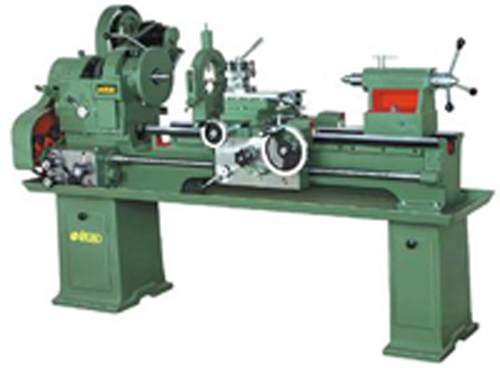

Medium duty lathe machine
1370 MM., 1600 MM., & 1830 MM. |
| CAPACITY |
METRIC |
| Height of Centre |
215 mm. |
| Swing Over Bed |
425 mm. |
| Swing Over Cross Slide |
260 mm. |
| Movement of Cross Slide |
250 mm. |
| Swing of Gap |
620 mm. |
| BED |
|
| Bed Type |
2 V & 2 Flat |
| Bed Width |
279 mm. |
| Length of Gap in Bed |
110 mm. |
| Length of Gap in Front of Face Plate |
125 mm. |
| MAIN SPINDLE |
|
| Size of Threaded Spindle Nose |
6 T.P.I. 75 mm. |
| Taper Bore in Spindle Sleeve |
MT-4 |
| Spindle Bore |
52 mm. |
| TAIL STOKE |
|
| Ram Diameter |
50.8 mm. |
| Taper Bore in Centre Sleeve |
MT-4 |
| Ram Travel |
150 mm. |
| COMPOUND SLIDE |
|
| Travel of Compound Slide |
150 mm. |
| Tool Shank Section |
25 x 25 mm. |
| SPEEDS |
|
| No. of Speeds |
6 |
| Range |
40 - 550 RPM |
| THREAD/NO. OF RANGE |
|
| Lead Screw Diameter & Pitch |
31.75 mm. x 4 TPI |
| Metric |
19/0.50 to 8.0 mm. |
| Inch |
23/4 to 40 TPI |
| ELECTRICAL |
|
| Main Motor (1440 R.P.M. -AC-3 Phase) |
2 H.P. / 440 V |
